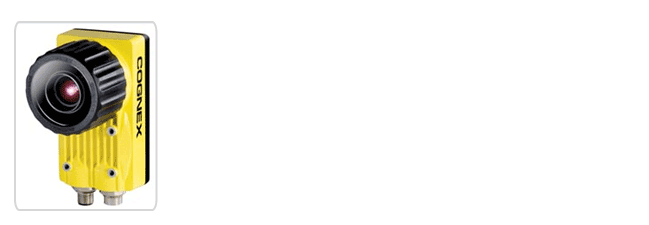

The In-Sight¢ç 5000 series vision system offers you superior and robust vision features in order to improve productivity and increase product quality. This will save on product expenses for manufacturers all over the world. The In-Sight model is the most suitable system for your application.

¡Ý Designing standards for the industry
The In-Sight 5000 series of vision systems is the only product group supporting the industry standard out of all the current vision systems. It is designed to minimize damage using a firmly-casted aluminum and stainless steel case. The M12 connector, which is securely locked, and the lens covers comply with the Standards IP67 and IP68 in order to protect it from dust or humidity so that factories can focus on safe production with no concerns.

¡Ý Superior functionality
In-Sight 5000 series vision systems include In-Sight 5100 which recorded higher sales and In-sight 5600 that is twice as fast as the In-Sight 5400 with the best performance. Most models offer the proven Cognex total vision tool library including advanced OCR tools which allow you to adjust and train for measuring or for working with the robot guide application. All models also include an industry standard PatMax® for identifying the location of parts.

¡Ý Availability for new applications
The newly launched In-Sight 5604 line scan vision system combines robust In-Sight 5000 series hardware and the best vision tool in the industry with high speed 1K line scanning device, thus no extra PC-based software or line scan camera heads are required. This video device is more sensitive to light compared to existing devices so it reduces the bills for lights or complexity and offers the benefit of being easy to integrate into limited spaces. The In-Sight 5604 is supported with a hardware and software encoder that has flexibility in solving problems and a wide range of video capture.
¢º In-Sight 5000 Series Vision Systems


Model specification

Description

Resolution
Standard

In-Sight 5100

Lowest price/best performance

640X480

In-Sight 5400

High-performance system, stainless steel is also available

640X480

In-Sight 5401

High-resolution system

1024X768

In-Sight 5403

High-resolution system, stainless steel is also available

640X480

In-Sight 5600

The fastest system

640X480

In-Sight 5603

The best resolution system with the fastest speed

1600X1200
Color

In-Sight 5100C

The most reasonable price color system, 5000 series

640X480

In-Sight 5400C

High-speed color system, stainless steel is also available

640X480
Line scan

In-Sight 5604

The most flexible system with the fastest speed (1K line scan available)



ID

In-Sight 5110

For ID reader only

640X480

In-Sight 5410

For  ID readers only with high speeds, stainless steel is also available

640X480
In-Sight 5411

For  ID readers only with high speeds and high resolution

1024X768

In-Sight 5603

For  ID readers only with the highest resolution

1600X1200

In-Sight 5610

For  ID readers only with ultra-high speed

640X480

In-Sight 5613

For  ID readers only with the best performance

 1600X1200
Remote head vision

In-Sight 3400

 In-Sight 5400 performance in a stand-alone configuration (no PC is required for set up)
